Product name：11F1222MC-20 (12mm) 1.1"

Product description：

12mm 1.1" 20MP Machine Vision FA <0.5% Low Distortion Industrial Face Recognition 8K Camera Megapixel Lenses

High resolution : 20 megapixel cover all 8K & 4K
Large format: 1.1" size covering 1", 3/4, 2/3", 1/1.8", 1/2" camera
Low distortion : <0.5% low distortion use machine vision
Magnification : 0.0087x ~ 0.003x ( 100mm ~ 5000mm )
Application : Automation, machine vision, medical, life science, ITS, SMT, AOI

Model		11F1222MC-20
Resolution		20 Megapixel
Format (inch)		1.1"
Focal Length (mm)		12mm
B.F.L (mm )		12.9mm
Aperture (Close)		F2.2 Manual Iris
Angle of View (°)	1.1"	*726147.5*
	1"	*675643.5*
	2/3"	*494030.5*
M.O.D (m)		0.1
Distortion		<0.5%

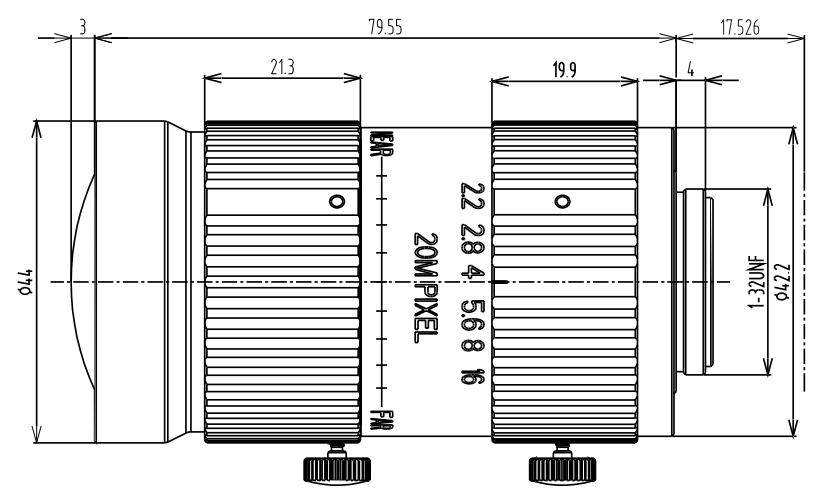

Size		*Φ4474**
Mount		C
Weight (g)		225
