8mm 2/3" 10MP Machine Vision FA 0.26% Low Distortion Industrial Face Recognition 4K Camera Megapixel Lens
High resolution : 10 megapixel cover all 4K & 1080P Large format: 2/3" size covering 2/3", 1/1.8", 1/2" camera Big aperture : F2.0 big aperture makes imaging far better Low distortion : <0.26% low distortion use machine vision
Compact size : <38mm diameter Application : Automation, machine vision, medical, life science, ITS, SMT, AOI.
Model 型号 | 23F824MC-10 | Resolution 像素 | 10 Megapixel | Format 靶面 | 2/3" | Focal Length (mm) 焦距 | 8.0mm | B.F.L (mm) 后焦 | 9.3mm | Aperture (Close) 光圈 | F2.4 Manual iris | Angle of View (°) | 2/3" | 70*58.2*45.2 | 1/2" |
| 1/3" |

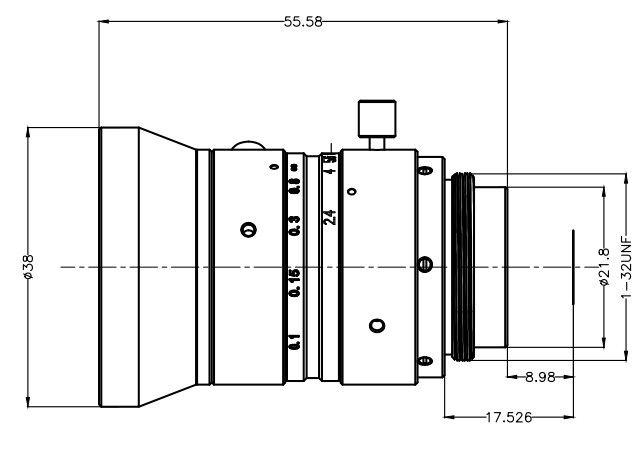

| M.O.D (m) 最近物距 | 0.1m | Size 尺寸 | Φ38*47 | Distortion 畸变 | <0.26% | Filter Size (mm) 滤镜尺寸 | M37*0.5 | Mount 接口 | C | Weight (g) 重量 | 108 |
( Suggest to Basler, Baumer, Hikvision )

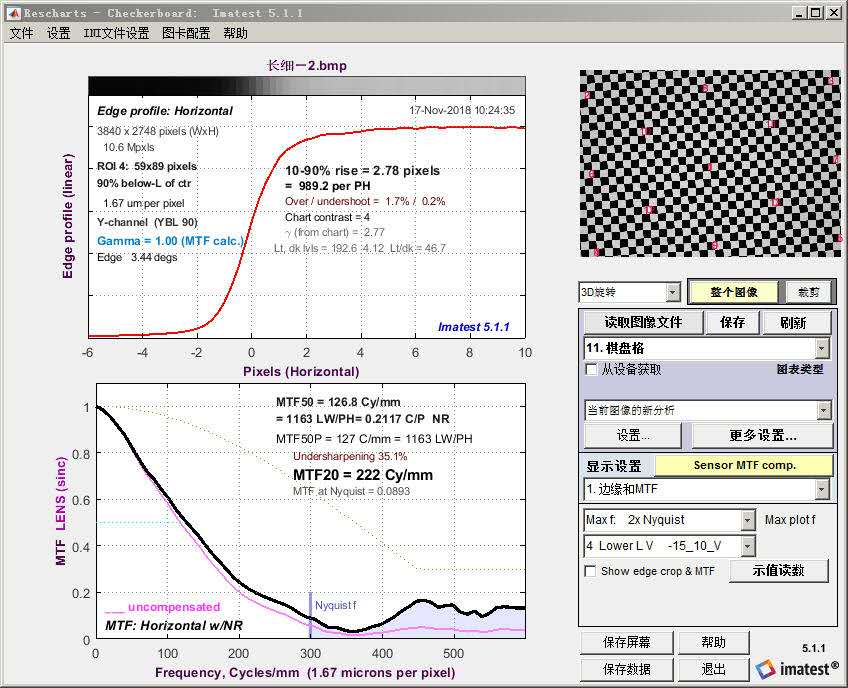

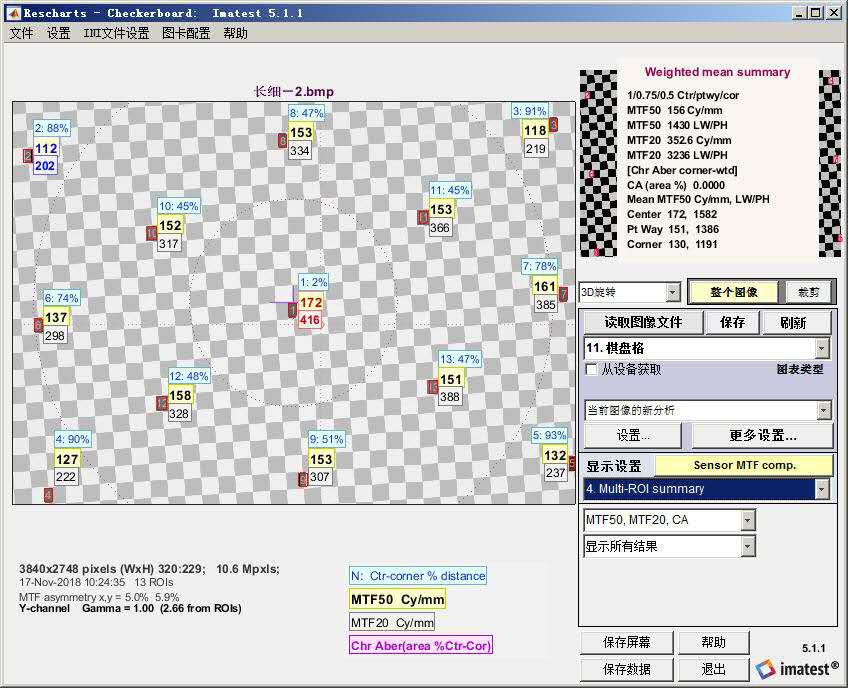

( A Best MTF Chart )
|
